Water Well Drilling Rig Core Drill Rig
  • Water Well Drilling Rig Core Drill Rig
  • Water Well Drilling Rig Core Drill Rig
  • Water Well Drilling Rig Core Drill Rig
  • Water Well Drilling Rig Core Drill Rig
  • Water Well Drilling Rig Core Drill Rig
Payment Type: L/C,T/T,Western Union
Terms of Trade: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 10 Days
Packaging: wooden case
Productivity: 1000 sets per month
Brand: heng wang
Transportation: Ocean,Land,Air
Place of Origin: jining city shandong province ,china
Supply Ability: usual have stock
Certificate: ISO
HS Code:  8430490000
Port: Shanghai,Qingdao,Ningbo
Basic Info

Model No.: HW130

Product Description

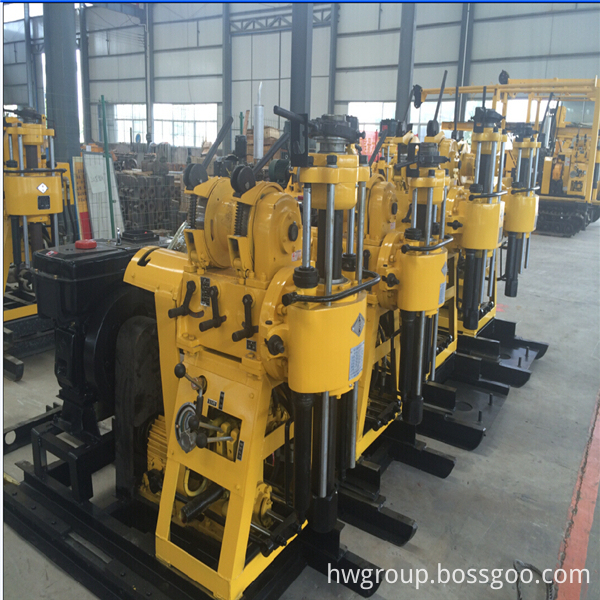

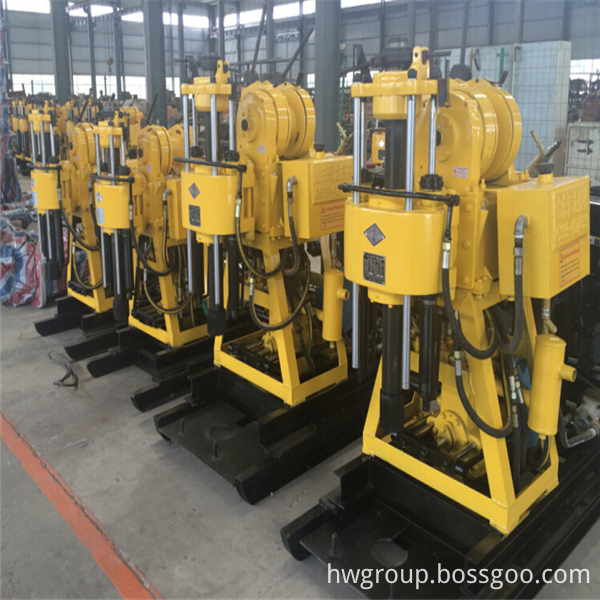

Hydraulic Water Well Drilling Rig machine

HW-130 Shallow Hydraulic water well drilling machine

a. Keeping bracket is installed on the hosit to form a double wheel support structure, able to withstand strong blow
b. Vertical box are fixed by four groups of bearings to ensure that the rotary machine has sufficient rigidity to overcome gravel layer and other complex geological conditions.
c. the machine is equipped with national patent technology---taper clutch, with charactristics of strong transmission troque, easy operation and free maintenance.
d. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.

Applications of HW-130 well drilling machine

HW-130 core Drilling Rig is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, river levees, subgrade grouting hole ,drilling and driect grouting, civil wells and earth temperature central air-conditioner,etc

Main technical parameters

Unity machine parameter
Drilling depth 10-130m
Maximum open hole caliber 260mm
End hole caliber 75mm
Drill rod caliber 50mm
Drilling angle 90~75
Drill weight (No include power) 510 560kg
Unity machine dimensions 2.5×1×1.3 2.5×0.9×1.3m
spindle speed 142,285,570r/min
Spindle stroke 450mm
Max.single line hoisting capacity 960kg
Single line lifting speed 0.41,0.82,1.64m/s
Tightrope caliber 27m
Mud pump of HZ-130YY model drilling rig
Type Horizontal single urn twin-action
Displacement 95/77L/min
Diesle engine Model s1110 18HP
Electric motor Y160M-4 11kw 1440r/min
Maximum pressure 1.2Mpa
Work pressure 0.7Mpa
Water inlet caliber 30mm
Water to exit caliber 25mm
Triangle conveyer belt B1575mm

Small Water Well Drilling Rig

Portable Water Well Drilling RigWater Well Drilling Rig MachineWater Well Drilling Rig For SaleHydraulic Water Well Drilling Rig

portable water well drilling rig

water well drilling rig machine

Looking for professional water well drilling rig machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the water well drilling rig price are competitive with good quality ,such as ,truck mounted water well drilling rig,portable water well drilling rig,trailer mounted water well drilling rig,small water well drilling rig with 100m-600m drill depth .Machine are quality guaranteed. We are China Origin Factory of water well rotary drilling rig .Please trust me ,we can provide the best quality products and good after sales service with professional knowledge and 9 years export experience. If you have any question, please feel free to contact me ,my name is Nina .

Shandong Hengwang Group Co., Ltd

  Shandong Hengwang Group is a science and industry integration enterprise which is located in the Jining city of Shandong Province-the hometown of Confucius and Mencius and the birthplace of Confucianism. Founded in 2011 with a registered capital of 50 million, Our company owns six wholly-owned subsidiaries which have 400 employees. Since its inception, relying on its strong scientific and technological strength, highly skilled management personnel, strict testing methods and exquisite division of labor and production, Shandong Hengwang Group dedicated to producing, research and development and sales of drilling equipment, construction machinery, and mining machinery.
